AFUL DAWN-X Flagship Quad-Brid IEM

The AFUL DAWN-X is AFUL’s ultimate flagship in-ear monitor, crafted to redefine high-fidelity listening. Featuring a groundbreaking 14-driver quad-brid configuration (1DD+8BA+4EST+1BCD per side), the DAWN-X combines innovation and artistry to deliver a sound that is powerful, refined, and breathtakingly lifelike.

Inspired by the first light of dawn, this IEM embodies AFUL’s pursuit of acoustic excellence with technologies that push the boundaries of what’s possible in personal audio.

Quad-Brid 14-Driver Engineering

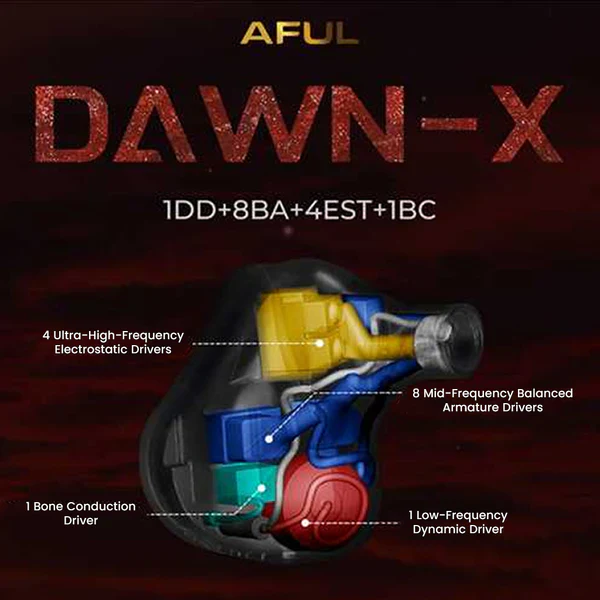

Each side of the DAWN-X integrates a dynamic driver, eight balanced armatures, four electrostatic drivers, and a bone conduction driver. Unlike conventional EST hybrids that focus only on ultra-high frequencies, AFUL’s Wideband Electrostatic Technology extends coverage from 5kHz to beyond 20kHz, ensuring silky smooth treble with unmatched detail and air.

3D Micro-Resonance Acoustic Path

With 3D Micro-Resonance Acoustic Path Technology, AFUL precisely aligns each driver’s performance through custom acoustic structures. The result is seamless driver integration, ultra-low distortion, and crystal-clear sound across the spectrum.

Multi-Dimensional Six-Way Crossover

The DAWN-X employs a six-way electronic + six-way physical crossover system, combined with RLC Network Frequency Division Correction Technology. This advanced tuning minimizes resonance peaks and guarantees smooth, natural tonality with exceptional coherency.

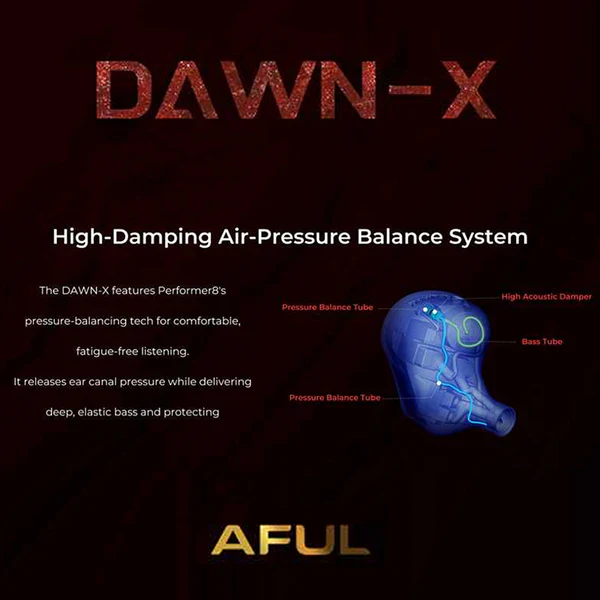

High-Damping Air-Pressure Balance

Adopted from AFUL’s Performer series, this system controls internal ear canal pressure for superior comfort and stability. It also enhances bass performance, giving the DAWN-X deep, textured, and elastic low-end response.

Premium Craftsmanship & Cable

Each unit is a work of art, featuring solid-stabilized wooden faceplates with unique grain patterns. The ergonomic shell ensures all-day comfort, while the bundled 6N single-crystal copper 8-strand cable provides pristine signal transmission with minimal loss. Available in both 3.5mm and 4.4mm terminations.

The Sound of a New Dawn

The AFUL DAWN-X is more than an IEM—it’s an awakening for your ears. With its wide frequency response, lifelike imaging, and immersive musicality, it stands as one of the most advanced flagship IEMs in the world.

---

Technical Specifications

• Drivers: 1DD + 8BA + 4EST + 1BCD (Quad-Brid, 14 drivers per side)

• Impedance: 15Ω ±13%

• Sensitivity: 101dB @1kHz

• Frequency Response: 5Hz – 35kHz

• Connectors: 0.78mm 2-Pin

• Cable: 6N Single-Crystal Copper, 8-Strand Litz Braid

• Termination: 4.4mm plug

• Faceplates: Solid-Stabilized Wood

• Design: Ergonomic shell with air-pressure balance system
